Batteries - Li ion rather than Li Po? Best way to look after them?

Benmavicpilot

Active Member
Joined
Jan 28, 2020
Messages
42
Reactions
28
Age
47
Location
Watford
All the specifications say that the batteries are now Li ion (same as original mini) rather than the Li Po as was in the Mini 2, this correct?

Assuming so, then are the batteries in the Mini 3 more resilient / tolerant of being kept fully charged or should they be kept at a certain range when not being used i.e. 40-60% charged?

Also wonder if anyone with the fly more kit has noticed the multi-charger dropping charge on the batteries after a number of days?


rod.carter

Active Member
Joined
Jan 15, 2017
Messages
26
Reactions
10
Location
United Kingdom
From my battery it states:-

Lithium Ion Polymer Rechargeable Battery
Max Charge Voltage 8.5v
Nominal Voltage 7.38Vdc
Rated Capacity: 2453mSh, 10.10Wh


slup

Well-Known Member
Premium Pilot
Joined
Oct 18, 2019
Messages
3,833
Reactions
9,027
Age
54
Location
Sweden
Li-Ion & LiPo batteries are treated the same ... either of them are more or less resistant to be stored in a too low or too high charge state, both should be placed on nominal cell voltage during storage.

... And a "Lithium Ion Polymer" is a LiPo, not a Li-Ion.


StantonZ

Well-Known Member
Joined
Oct 11, 2020
Messages
450
Reactions
494
Location
Plano, TX
Just about all Lithium batteries in this Consumer Electronics (CE) segment are LiPo; LiOn formulas are typically found in larger formats (like cars). LiPo typically has a bit higher energy density...but is also more prone to over-heating and fire (which require additional attention and care during charging/storage). Having said all that, the maintenance/use for all Lithium battery types are generally the same: don't let sit at low/high SOC (store somewhere ~50%)...don't charge hot (or cold)...etc.

  • Like
Reactions: globetrotterdrone

slup

Well-Known Member
Premium Pilot
Joined
Oct 18, 2019
Messages
3,833
Reactions
9,027
Age
54
Location
Sweden
A distinct differentiator between LiPo & Li-Ion is the minimum cell voltage ... a LiPo can go down to 3.0V/cell before permanent damage, a Li-Ion can go down to 2.5V/cell.

Furthermore a LiPo can sustain high amp draw without large voltage sag much, much better than a Li-Ion ... this is very apparent in high amp draw applications like race quads. Li-Ion can be used there but they need to be flown very carefully, very much like a fixed wing, LiPo is more suited where quick & high throttle commands are used.

cheers - so battery management is the same as for the mini 2 then, keep them at 40-60% when not being used.
Yep ...


globetrotterdrone

Well-Known Member
Joined
May 18, 2019
Messages
783
Reactions
496
Location
Europe
I wonder, if the automatic discharge is freely adjustable right know ...?
I remember with the M2P, it was locked to 10 days with DJI saying, that it is just fine but later got reduced and now can be set to a minimum of 2 days.


rod.carter

Active Member
Joined
Jan 15, 2017
Messages
26
Reactions
10
Location
United Kingdom
With my Mavic Pro batteries, I could set the discharge % and time manually, so after x days, the battery would auto discharge to y%.

I know the DJI Fly app doesn’t have this option, but do the M3P batteries still perform something similar as they are also designated ‘intelligent’?


globetrotterdrone

Well-Known Member
Joined
May 18, 2019
Messages
783
Reactions
496
Location
Europe
With my Mavic Pro batteries, I could set the discharge % and time manually, so after x days, the battery would auto discharge to y%.

I know the DJI Fly app doesn’t have this option, but do the M3P batteries still perform something similar as they are also designated ‘intelligent’?
I am pretty sure, they do but as you said, as DJI Fly is relatively dumb compared to DJI Go, there might not be a menu to adjust its pre-set behaviour.

I always forget, that DJI Fly will for the ease of the beginners, neglect some functions we already had in previous software from DJI.

  • Like
Reactions: rod.carter

slup

Well-Known Member
Premium Pilot
Joined
Oct 18, 2019
Messages
3,833
Reactions
9,027
Age
54
Location
Sweden
... do the M3P batteries still perform something similar as they are also designated ‘intelligent’?

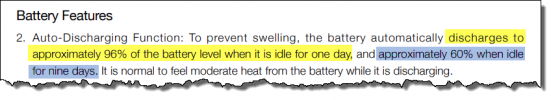

From the user manual ...


And most probably the counter resets if the battery button is pressed to check the charge status ... so in practice & by mistake a battery can be on a very high charge state longer than those 9 days.


globetrotterdrone

Well-Known Member
Joined
May 18, 2019
Messages
783
Reactions
496
Location
Europe
@slup
Then it's the same standard as the 10 days of previous models, however users have clearly prefefred fewer days in the past, which ultimately, seems not to be adjustable without proper coding in the software.

Last edited:
  • Like
Reactions: scooot

slup

Well-Known Member
Premium Pilot
Joined
Oct 18, 2019
Messages
3,833
Reactions
9,027
Age
54
Location
Sweden
@slup
Than it's the same standard as the 10 days of previous models, however users have clearly prefefred fewer days in the past, which ultimately, seems not to be adjustable without proper coding in the software.
Yep ... that timing is way too long, personally I never rely on that discharge functionality ... for my photo drone I use the Hanatora charger to place them on storage voltage after use ... & do similar with my quad battery packs, goes to 3.8V directly after use.

My limit for batteries over or under nominal charge is maximum 2 days.


RogerDH

Well-Known Member
Joined
Dec 22, 2019
Messages
689
Reactions
534
Age
72
Location
Colorado Springs, Colorado
I am pretty sure, they do but as you said, as DJI Fly is relatively dumb compared to DJI Go, there might not be a menu to adjust its pre-set behaviour.

I always forget, that DJI Fly will for the ease of the beginners, neglect some functions we already had in previous software from DJI.
"Ease of the beginners" was the rationalization offered for developing DJI Fly for the Mini, but then that got a little strained when it was also used for the Air 2 and 2S, but it's really hard to understand it on the Mavic 3. Over $2000 for a drone that can't do simple mapping?


globetrotterdrone

Well-Known Member
Joined
May 18, 2019
Messages
783
Reactions
496
Location
Europe
@RogerDH
I'm completely with you, not having an advanced mode in this after such a long time and with no support for DJI Go with later models , that goes just beyond my mind. But it's DJI, they never really were eager with software support ...


rod.carter

Active Member
Joined
Jan 15, 2017
Messages
26
Reactions
10
Location
United Kingdom
A YouTuber has pointed out that the PDF guide for the M3P states that the battery chemistry is LiNiMnCoO2, different to what is stated on the actual battery.

Are the batteries really LiNiMnCoO2, or LiPo?
