Time taken to charge 3 batteries?

[deepakvrao]

Can anyone give me a rough idea how long it takes to charge 3 batteries in the hub? Say, if the batteries are all at about 20%.



[Deleted member 109934]

roughly 3 hours plus.



[msinger]

Per the DJI Store info, It takes 270 minutes to charge all batteries with a DJI 18 W USB charger. That's of course assuming the batteries are not already partially charged.



[deepakvrao]

Thanks guys. I lost the original charger, and am using a phone charger which is 18 watts. Taken me a bit less than 2 hours to charge 2 batteries which were ar 20 and 30 percent or so. Was wondering if that was too slow. I guess it seems OK.

Got the MM on a trip to the US, and left the charger in a hotel room in Zion.



[DanMan32]

You can tell if the batteries are quick charging by the rate at which the LEDs dance. Harder to tell when starting out though with only one or two LEDs.

It also takes several seconds before QC engages, showing normal charging first.



[Deleted member 109934]

Thanks guys. I lost the original charger, and am using a phone charger which is 18 watts. Taken me a bit less than 2 hours to charge 2 batteries which were ar 20 and 30 percent or so. Was wondering if that was too slow. I guess it seems OK.

Got the MM on a trip to the US, and left the charger in a hotel room in Zion.

You have a fast charger and fast cable, those are good numbers. With slower cable, it takes forever.



[DanMan32]

Any data cable will do, as long as the power wires can sustain the current. But if said data cables can charge at 1.5A at normal 5v, then they can also do so at 12v.



[digson]

80min



[Tworth23]

80min
View attachment 87685

Do u have link to that. Can’t find on aliexpress



[tusc]

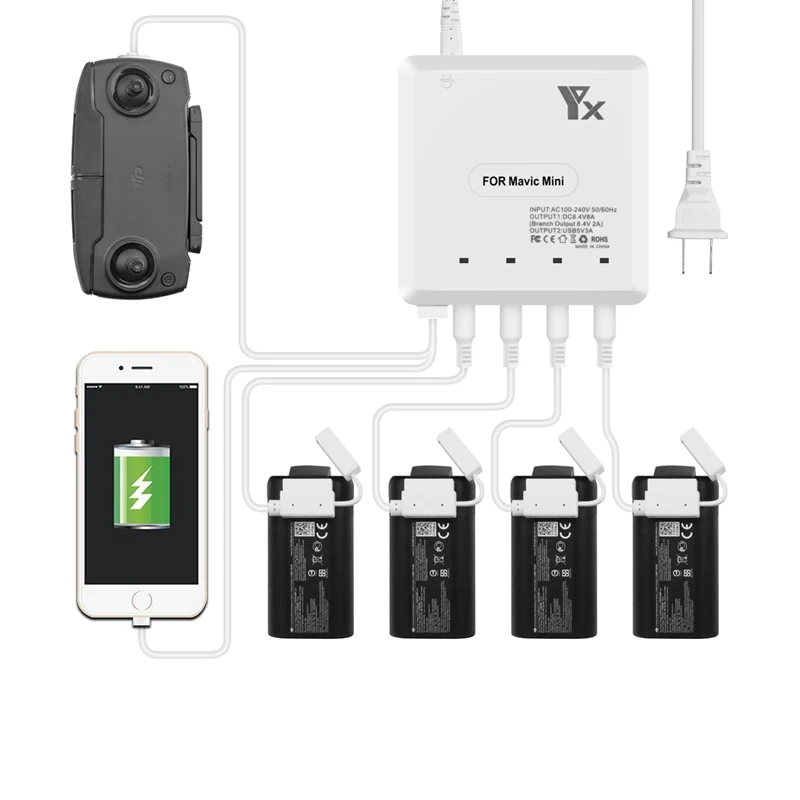

35.43US $ 14% OFF|mavic mini Charger Battery Charger with Battery Charging Cable USB Port Remote Control Charge for dji mavic mini drone|Drone Battery Chargers| - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com

here's their full Mini list of items:

Buy Products Online from China Wholesalers at Aliexpress.com

They appear to sell ND filters but I thought this wasn't supported: US $20.11 17% OFF|mavic mini drone ND Filters kit ND4+ ND8 + ND16 + ND32 lens filter for dji mavic mini drone Accessories on AliExpress



[mavicn00b]

Can anyone give me a rough idea how long it takes to charge 3 batteries in the hub? Say, if the batteries are all at about 20%.

With stock QC3 charger from 20mins I'd say 70mins per battery. You can also get a 24W QC3 charger to make it about 20% faster, maybe 50mins per battery. Best solution is the aftermarket parallel charger as that will do at same time vs inferior sequential DJI charger.



[Deleted member 109934]

Any data cable will do, as long as the power wires can sustain the current. But if said data cables can charge at 1.5A at normal 5v, then they can also do so at 12v.

I have few flimsy thin cables they are charging fine at 5v 2.1A but do not want to switch to 12V, thicker cables have no problems with 12V 1.5A



[DanMan32]

Your cables should do. Voltage difference is insignificant in the insulation.



[DanMan32]

With stock QC3 charger from 20mins I'd say 70mins per battery. You can also get a 24W QC3 charger to make it about 20% faster, maybe 50mins per battery. Best solution is the aftermarket parallel charger as that will do at same time vs inferior sequential DJI charger.

I don't think the circuits in the AC/hub will use more than 18W to the battery. IE 1.5A max at 12V Max. Won't hurt to try though.

I heard that QC 3 limits to 18W per device but that's only what someone said on this site.



[mavicn00b]

I don't think the circuits in the AC/hub will use more than 18W to the battery. IE 1.5A max at 12V Max. Won't hurt to try though.

I heard that QC 3 limits to 18W per device but that's only what someone said on this site.

It's rated for 24w in the specs. Look closely at the label you'll see 12V 2A in tiny writing on the hub.
24W QC3 chargers do exist, got one with the overpriced Smart RC for the mavic 2 and a quick search on Amazon will turn up a bunch.
The parallel charger is more appealing to me though.



[DanMan32]

If there are more than one ports on the charger, then it may be 24W total, but less per port.

Only a USB V/A meter would tell you for sure. I really need to get one. But Christmas is coming so I need to refrain from buying gadgets right now.



[mavicn00b]

If there are more than one ports on the charger, then it may be 24W total, but less per port.

The battery will charge upto 24W, you can check that yourself on DJI's spec sheet. I checked with a basic power meter and it does appear to draw 5-6w more current with the higher spec power supply.



[Deleted member 109934]

Any data cable will do, as long as the power wires can sustain the current. But if said data cables can charge at 1.5A at normal 5v, then they can also do so at 12v.

I have about 15 different cables collected over the years, and all thin cables that have no problems at 5v 2A will not do 12V no matter what I try, they just don't switch.




thick cables (even very old) not a problem



[deepakvrao]

I have about 15 different cables collected over the years, and all thin cables that have no problems at 5v 2A will not do 12V no matter what I try, they just don't switch.

View attachment 87755


thick cables (even very old) not a problem

View attachment 87756

What app is that? And what is it measuring? Power in to the phone from the battery pack I suppose?



[Deleted member 109934]

it is a voltmeter battery indicator built into the battery pack.
